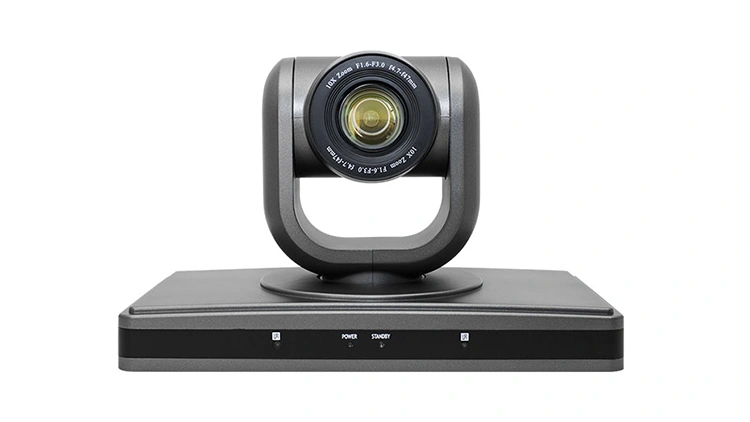

HD 10x Optical Zoom Conference Camera
HD8810-U30-K7
Quantity
HD 10x optical zoom HD 1080p delivers the high quality meeting experience of small conference room or office.
- Adopt high precision motor and driver to ensure the stable and quiet PTZ movement
- Lower total cost of ownership and faster return on investment.
- All the system are easy to purchase, install and use
---------------------------------------------------------------------------------------
Product Description
- 1/2.8” Progressive CMOS, 2.1 megapixel
- USB 3.0 high speed transfer
- 10x optical zoom * 12x digital zoom
- Support YUY2 1080p30 and 720p30, 640*480 etc
- HOV: 60.9°-5.86°
- VISCA, PELCO-D, UVC1.5 protocol
---------------------------------------------------------------------------------------
Through the power indicator, the user knows the camera status in time and check the camera power on/off.
Plug and play, USB3.0 output video without compression and support USB2.0 meanwhile. DC 12V power supply.
Control the camera by IR remote control. Pan/Tilt movement, zoom in/out, OSD menu, preset positions etc.
Compatible with Most Cloud Conferencing software
DIMENSIONS
Specs:
- 1/2.8” Progressive CMOS, 2.1 megapixel
- HOV: 60.9°-5.86°
- 10 Optical X 12 Digital zoom
- USB 3.0
- f=4.7-47mm F1.6-3.0
- 1080P30/25(YUY2)、720P30/25(YUY2)、800×600、640×480
- VISCA, PELCO-D, UVC
- Tilt movement: +90° – 45°
- Pan movement: 355°
- 12V power supply
- Lens/Dome OSD
- RS232C, RS485, USB
- N. Weight: 2.27 kgs
- G. Weight: 2.89 kgs
- L 250 mm x W 140 mm x H 160 mm
- Desk top, tripod, wall, ceiling mount
TECHNICAL SPECIFICATIONS
Dementions
- Single box: L 310 mm x W 240 mm x H 230 mm
- Carton: L 500 mm x W 320 mm x H 260 mm
- 2 boxes in 1 carton
PACKAGE CONTENTS
Packing list:
- HD8810-U30-K7 camera x 1
- Remote control (without battery) x 1
- USB 3.0 cable x 1
- User’s manual x 1
- Power supply x 1
- Bracket x 1
- Screws set x 1
- Certificate x 1, warranty x 1
