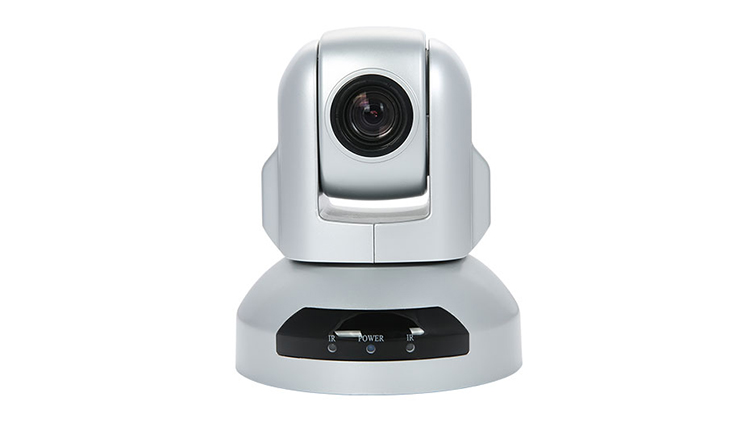

HD 10x optical zoom conference camera
HD380-U30-K2
Quantity
HD 10x optical zoom HD 1080p delivers the high quality meeting experience of small conference room or office.
- Adopt high precision motor and driver to ensure the stable and quiet PTZ movement
- Lower total cost of ownership and faster return on investment.
- Connect to Windows/Android/Linux devices without other software
---------------------------------------------------------------------------------------
Product Description
- 1/2.5” color CMOS, 2.1 megapixel
- USB 3.0 high speed transfer
- 10x optical zoom * 12x digital zoom
- 1080p@30/25/20/15/10/5, 720p, 800×600, 640×480 /60 /50 /30 /25 /20 /15/10/5
- HOV: 49°-5.4°
- VISCA, PELCO-P, PELCO-D protocol
---------------------------------------------------------------------------------------
Through the power indicator, the user knows the camera status in time and check the camera power on/off
Plug and play, USB3.0 output video without compression and support USB2.0 meanwhile. DC 12V power supply.

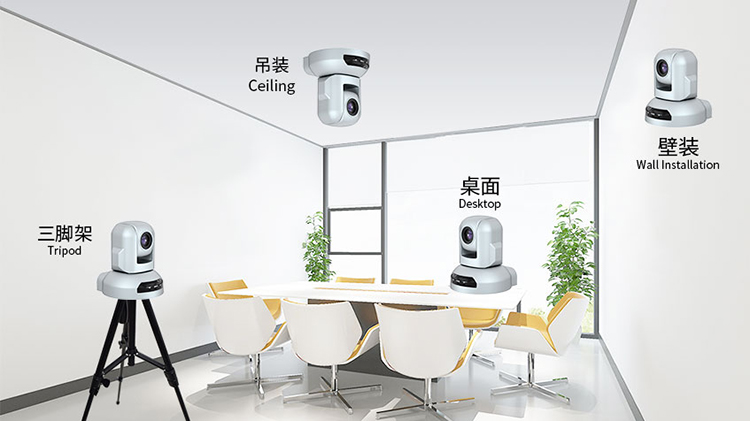

Install the camera on desk top, tripod, wall and even ceiling mount to support customer’s difference needs of using it.
Compatible with Most Cloud Conferencing software
DIMENSIONS
Specs:
- 1/2.5” color CMOS, 2.1 megapixel
- HOV: 51.8°-5.86°
- 10 Optical X 12 Digital zoom
- USB 3.0
- f=5-50mm F2.0
- 1080p@30/25/20/15/10/5, 720p, 800×600, 640×480 /60 /50 /30 /25 /20 /15/10/5
- VISCA, PELCO-P, PELCO-D
- Tilt movement: +90° – 45°
- Pan movement: 355°
- 12V power supply
- Lens/Dome OSD
- RS232C, RS485
- N.Weight: 1.51 kgs
- G.Weight: 1.66 kgs
- L 115 mm x W 116 mm x H 132 mm
- Desk top, tripod, wall, ceiling mount
TECHNICAL SPECIFICATIONS
Dementions
- Single box: L 220 mm x W 180 mm x H 230 mm
- Carton: L 460 mm x W 380 mm x H 250 mm
- 4 boxes in 1 carton
PACKAGE CONTENTS
Packing list:
- HD380-U30-K2 camera x 1
- Remote control (without battery) x 1
- USB 3.0 cable x 1
- User’s manual x 1
- Power supply x 1
- Bracket x 1
- Screws set x 1
- Certificate x 1, warranty x 1
