HD 18x Optical Zoom Conference Camera
HD8818-DXYC-P6
Quantity
HD 18x optical zoom is perfect for middle office or conference room
- Connect to Windows/Android/Linux devices without other software
- Autofocus makes everyone in the conference room clear and vivid
---------------------------------------------------------------------------------------
Product Description
- 1/2.8” Progressive CMOS, 2.1 megapixel

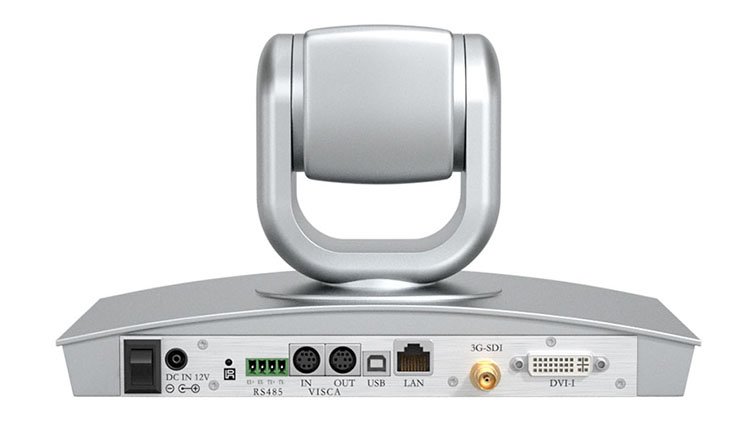

- 3G-SDI, USB2.0, LAN,DVI-I (DVI-I change to HDMI、YPbPr) Video Output
- 18x optical zoom
- 1080p60/50/, 1080P60/50, 720p60/50/30/25
- HOV: 58.7°- 3.2°
- VISCA, PELCO-D
---------------------------------------------------------------------------------------
Preset positions can be set and recalled. Positioning accuracy is up to +0.015°, this conference camera supports 64 preset positions.
Plug and play, easy to install with 12v power supply and USB 2.0 fast transfer. Control the camera by RS232C, RS485 etc.
Easy to set a live conferencing in any conference room within several minutes.
Compatible with Most Cloud Conferencing software
DIMENSIONS
Specs:
| Type | HD 18x Multi-interface Camera | |
| Image Sensor | Sensor | 1/2.8"Progressive CMOS |
| Effective Pixel | 2.1 Megapixel | |
| Min. Illumination | 0.5 Lux at F1.6 | |
| White Balance | AUTO/MANUAL/INDOOR/OUTDOOR/ATW/MANUI | |
| Gain Control | AUTO | |
Back-light Compensation | On/Off | |
| Shutter | 1/11/30000 | |
| S/N Ratio | >50db | |
| Lens | Focus | f=5.9-106.2 mm F1.8-3.9 |
| Iris | F1.6-F9.6 | |
| Zoom | 18x optical zoom | |
| HOV | 56°-4° | |
| Video Output | 3G-SDI, USB2.0, LAN,DVI-I (DVI-I change to HDMI、YPbPr) | |
| Video Output Format | 1080p60/50/, 1080i60/50, 720p60/50/30/25 | |
| Communication Interface | RS232C, RS485 (bidirectional) | |
| Communication Protocol | VISCA, PELCO-D | |
| Baud Rate | 2400/4800/9600/38400bps | |
| Tour Path | 1 | |
| Preset Position | 256 | |
| Speed Match | Speed can be determined by the zoom in/out of the lens | |
| OSD Menu | Support | |
| Image Flip | Support | |
| Pan Movement Speed | 100°/S | |
| Tilt Movement Speed | 72.2°/S | |
| Pan Movement Angle | 355° | |
| Tilt Movement Angle | 90°(up), 30°(down) | |
| Auto Scan | Support | |
| Boundary Scan | 0-355°(programmable) | |
| Remote Control | IR wireless P/T/Z | |
| Power Supply | DC12V±10%,2A | |
| Working Temperature | 50℃ | |
| Working Humidity | 0-95% RH | |
| Dimension (LxWxH) | 250mm×140mm×154mm | |
| Net Weight | 1400g | |
