HD 20x Optical Zoom Conference Camera
HD8820-U30-K5
Quantity
HD 20x optical zoom is perfect for middle office or conference room.
- Connect to Windows/Android/Linux devices without other software
- High SN ratio CMOS reduce the image noise effectively under the low light
- Autofocus makes everyone in the conference room clear and vivid
---------------------------------------------------------------------------------------
Product Description
- 1/2.5” color CMOS, 2.1 megapixel
- USB 3.0 high speed transfer
- 20x optical zoom * 12x digital zoom
- Support YUY2 1080p30 and 720p30, 640*480 etc
- HOV: 58.7°- 3.2°
- VISCA, PELCO-D, UVC1.5 protocol
---------------------------------------------------------------------------------------
20x optical zoom * 12X digital zoom, 1080p resolution show the clear zoom in/out even the corner of the conference room. Vivid video quality can be shared synchronously.

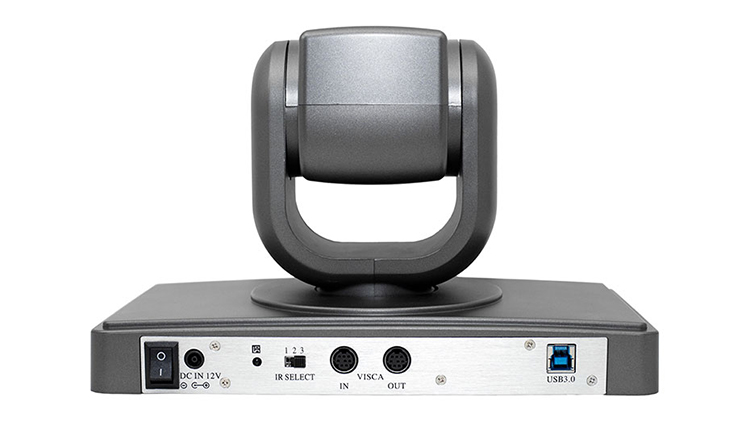

Support USB 3.0 fast transfer without compression and support USB 2.0 synchronously. The camera can be controlled by RS232 & RS485 as well.
Easy to set a live conferencing in any conference room within several minutes.
Compatible with Most Cloud Conferencing software
DIMENSIONS
Specs:
- 1/2.8” Progressive CMOS, 2.1 megapixel
- HOV: 58.7°- 3.2°
- 20 Optical X 12 Digital zoom
- USB 3.0
- f=4.7-94mm F1.6-3.5
- 1080P30/25(YUY2)、720P30/25(YUY2)、800×600、640×480
- VISCA, PELCO-D, UVC
- Tilt movement: +90° – 45°
- Pan movement: 355°
- 12V power supply
- Lens/Dome OSD
- RS232C, RS485, USB
- N. Weight: 2.27 kgs
- G. Weight: 2.89 kgs
- L 250 mm x W 140 mm x H 160 mm
- Desk top, tripod, wall, ceiling mount
TECHNICAL SPECIFICATIONS
Dementions
- Single box: L 310 mm x W 240 mm x H 230 mm
- Carton: L 500 mm x W 320 mm x H 260 mm
- 2 boxes in 1 carton
PACKAGE CONTENTS
Packing list:
- HD8820-U30-K5 camera x 1
- Remote control (without battery) x 1
- USB 3.0 cable x 1
- User’s manual x 1
- Power supply x 1
- Bracket x 1
- Screws set x 1
- Certificate x 1, warranty x 1
