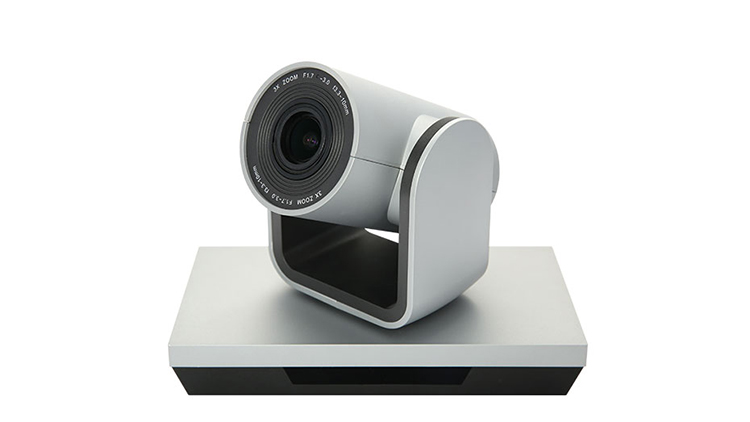

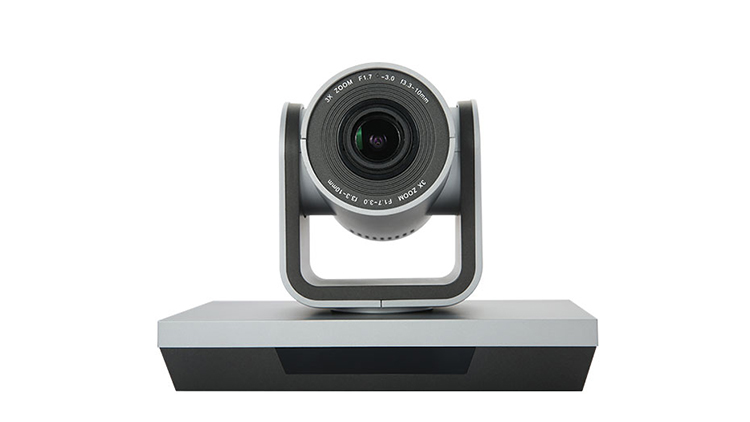

HD 3x optical zoom conference camera
H1-L3M-U30
Quantity
Totally new appearance with 3x zoom HD 1080p delivers the wonderful video experience of small conference room or office.
- Connect to Windows/Android/Linux devices without other software
- Lower total cost of ownership and faster return on investment.
- All the system are easy to purchase, install and use
---------------------------------------------------------------------------------------
Product Description
- 1/2.8” SONY CMOS , 2.1 megapixel
- USB 3.0 high speed transfer
- 3x optical zoom
- 1080P30,720P30,800*600,640*480
- HOV: 73°
- VISCA,PELCO-D,UVC protocol
---------------------------------------------------------------------------------------
Cloud Video Conferencing
Simplify collaboration to help your employees collaborate more effectively with systems on any device

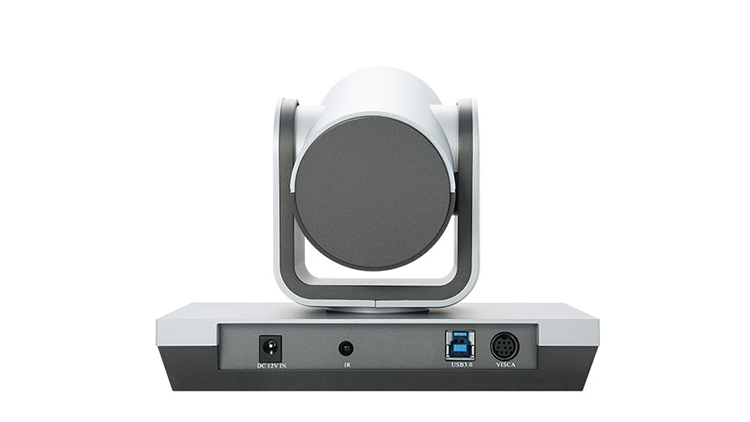

Support USB 3.0 fast transfer without compression and support USB 2.0 synchronously. The camera can be controlled by RS232 as well. Plug and play, DC 12V power supply.
Control the camera by IR remote control. Pan/Tilt movement, zoom in/out, OSD menu, preset positions etc.
Simple USB Plug and Play
Compatible with Most Cloud Conferencing software
DIMENSIONS
Specs:
- 1/2.8” SONY CMOS, 2.1 megapixel
- HOV: 73°
- 3x optical zoom
- USB 3.0
- f=3mm-10mm
- 1080P30,720P30,800*600,640*480
- VISCA,PELCO-D,UVC
- Tilt movement: +30° – 30°
- Pan movement: 330°
- 12V power supply
- RS232C, USB
- N.Weight: 0.53 kgs
- G.Weight: 1.39 kgs
- L 180mm x W 110mm x H130mm
- Desk top, tripod, wall, ceiling mount
TECHNICAL SPECIFICATIONS
Dementions
- Single box: L 310 mm x W 220 mm x H 130 mm
- Carton: L 460 mm x W 330 mm x H 420 mm
- 6 boxes in 1 carton
PACKAGE CONTENTS
Packing list:
- H1-L3M-U30 camera x 1
- Remote control (without battery) x 1
- USB 3.0 cable x 1
- User’s manual x 1
- Power supply x 1
- Bracket x 1
- Screws set x 1
- Certificate x 1, warranty x 1
