HD Audio and Video All-in-One Device
HD image sensor, EPTZ supported, suitable for small and medium-sized meeting rooms.
Built-in 2*4W speakerphone, 5.8G Wireless or USB 2.0 connection optional.
Omni-directional microphone standby time up to 3 months, working time up to 4 hours. Equipped with 12V 1A fast charge.
Product Description
- HD image sensor, EPTZ supported, suitable for small and medium-sized meeting rooms.
- Built-in 2*4W speakerphone, 5.8G Wireless or USB 2.0 connection optional.
- Using world-class echo cancellation technology, noise cancellation technology, howling suppression technology, and dynamic noise suppression
- technology, you can clearly output meeting content although in a noisy environment.
- Omni-directional microphone standby time up to 3 months, working time up to 4 hours. Equipped with 12V 1A fast charge.
- The camera part uses USB2.0 B type interface, USB Plug & Play, driver free. It’s easy to use by abandoning traditional complex connection method.
HD Audio and Video All-in-One DeviceAdvantages
1080P HD
HD image sensor, EPTZ supported, suitable for small and medium-sized meeting rooms.

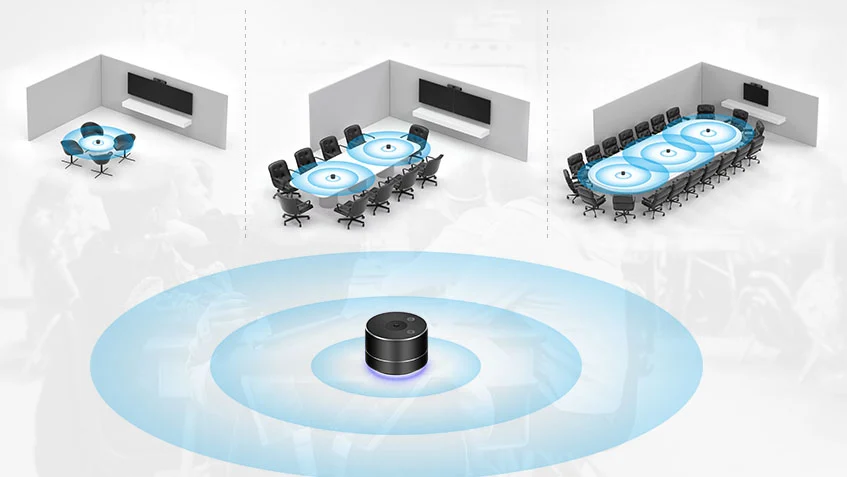

Omni-directional Microphone
Second-generation full-duplex voice calling technology, available with one digital silicon microphone and up to three wireless omni-directional microphone deployment. Each microphone pickup distance is not less than 2m. What’s more, flexible movement is a good solution to the problem of far-field sound pickup.

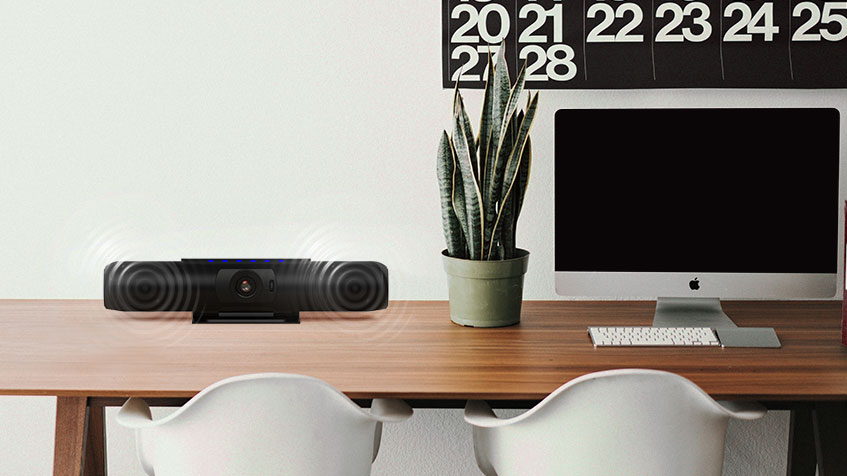

Speakerphone
Built-in 2*4W speakerphone, 5.8G Wireless or USB 2.0 connection optional.

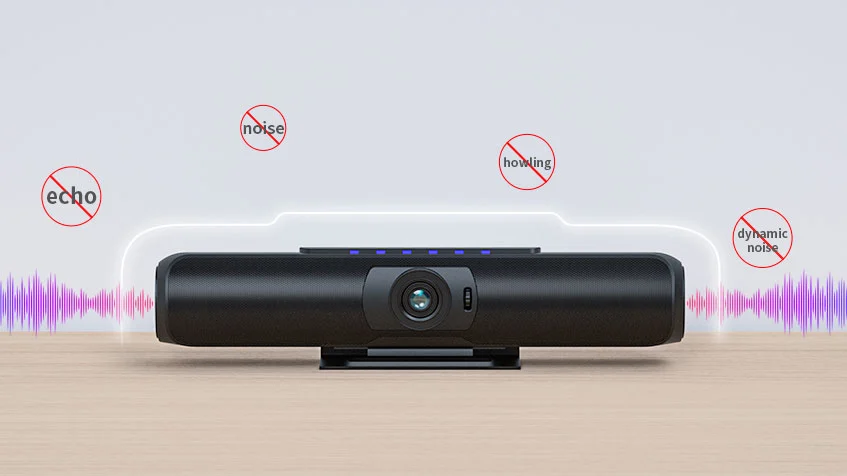

Echo Cancellation
Using world-class echo cancellation technology, noise cancellation technology, howling suppression technology, and dynamic noise suppression technology, you can clearly output meeting content although in a noisy environment.
Plug & Play
The camera part uses USB2.0 B type interface, USB Plug & Play, driver free. It’s easy to use by abandoning traditional complex connection method.

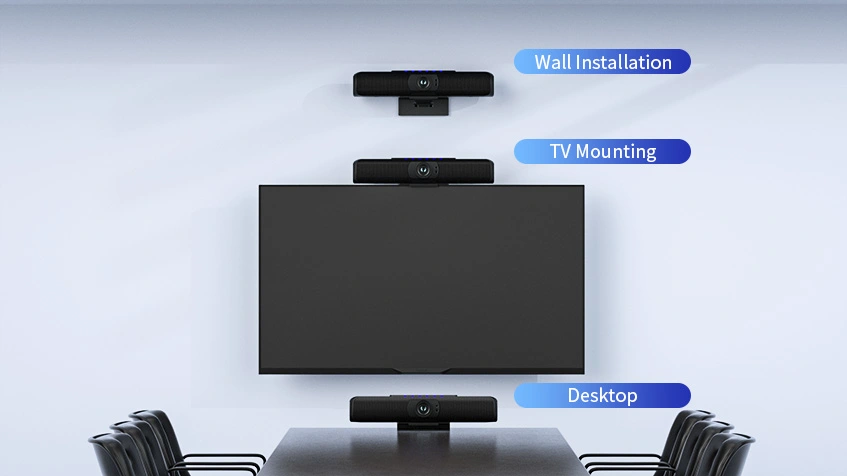

Desktop / TV Mounting / Wall installation
SPECS
| Audio video All-in-one conference camera | |||||||
| Video | |||||||
| Image sensor | Sensor | 1/2.8″ SONY CMOS | |||||
| EffectivePixel | 8.51 Megapixel | ||||||
| Minimum Illumination | 0.5Lux @ F1.8, AGC ON | ||||||
| White Balance | Auto | ||||||
| Gain control | Auto | ||||||
| Backlight Compensation | YES | ||||||
| SNR | >50db | ||||||
| Lens | Focus | 2.22 MM | |||||
| Iris | Fixed | ||||||
| Zoom | Fixed Lens（Support EPTZ,3x digital zoom） | ||||||
| Horizontal view angle | 116.4°(D)/105.6°(H)/56.8°(V) | ||||||
| Video output Interface | USB2.0 | ||||||
| Video output Format | MJPEG/H.264：1920*1080，1280*720，800*600，640*360； YUY2：1280*720，640*360 | ||||||
| Built-in Audio | |||||||
| Built-inDigital silicon Microphone | Type | Digital silicon Microphone | |||||
| Sensitivity | Built-in Microphone: -22dBFS | ||||||
| SNR | 60dB | ||||||
| Frequency response | 100Hz – 16kHz | ||||||
| Echo Cancellation | world-class Echo cancellation technology, echo cancellation time up to 256ms | ||||||
| Noise Cancellation | >12dB | ||||||
| Sampling frequency | Record：16kHz / Playback：48kHz | ||||||
| Voice pick up range | 3M | ||||||
| Transmission Model | Wired, USB2.0（Between all-in-one device and PC） Wireless,2.4G（Between all-in-one device and Microphone） | ||||||
| Speaker power | Double Channels4W*2 | ||||||
| All-in-one Device Power | 9W MAX | ||||||
| Control Mode | Touch button control /remote control | ||||||
| Button function | ON/OFF( Battery Check)、Volume+、volume-、speaker Mute、Microphone Mute、Scene switch | ||||||
| Remote function | Audio：Volume+、Volume-、microphone mute、speaker Mute,ON/OFF Video：ZOOM+、ZOOM-、up/down/left/right movement、OSD Menu | ||||||
| status Display | Two-color LED indicator | ||||||
| Power adapter | DC12V±0.2V,1A | ||||||
| working temperature | -10℃ ~ 40℃ | ||||||
| environment humidity | 0-95% RH | ||||||
| length*width*height | (L) 400 mm x (W) 75mm x (H) 62 mm | ||||||
| Weight | 950g | ||||||
| Expansion Microphone (1- 3 expansion Microphone(s)) | ||
| Type | Digital silicon Microphone | |
| Sensitivity | -26dBFS @1kHz 1Pa | |
| SN | 59dB | |
| Frequency response | 100Hz – 16kHz | |
| Sampling frequency | Record：48kHz | |
| Voice pick up range | 3M | |
| Wireless Transmission Model | 2.4G ISM | |
| Wireless transmit power | 2.4G: +5dBm | |
| Microphone power | 0.2W MAX | |
| Charge Jack | USB typc /Charging board contact charging | |
| Control Mode | Touch button control | |
| Button function | ON/OFF, Microphone Mute | |
| status Display | Two-color LED indicator | |
| Power adapter | Charging boardDC5V±0.2V,2A | |
| Battery | 800MAH | |
| Standby time | 6 month | |
| work time | >8hours | |
| working temperature | -10 – 40℃ | |
| environment humidity | 0-95% RH | |
| length*width*height | φ70x49mm | |
| Weight | 300g | |
PACKAGE CONTENTS
Packing List
- HD video conference camera * 1
- User’s manual* 1
- Expansion mics * 1-3
- Charging tray * 1
- Bracket and screws * 1
- USB 2.0 cable (5M) * 1
- Power supply of the camera * 1
- Power supply of the charging tray*
- USB-typeC cable*1
- Remote control (no battery) * 1
