Pro PTZ Cameras for Broadcasting & Education system Integration(DVI, HD-SDI)
HD9 Series
Quantity
HD9 Series are color video communication cameras which designed for video conferencing business, adopt 10x/12x/20x/30x optical zoom lens, built in high speed PTZ, make us can see tiny or long distance object clearly. It can be widely used in video conferencing, distance learning, telemedicine, teleconferencing, distance training, distance interview, Classroom camera, Church camera and so on.
---------------------------------------------------------------------------------------
Product Description
- 1/2.8” Progressive COMS Sensor, 2.1 Megapixel
- 1080P60/50/30/25, 1080I60/50, 720P60/50/30/25
- DVI-I, HD-SDI video output
- 10x/12x/20x/30x optical zoom optional
- Pan: 355°, Tilt: -30° ~ +90°
- OSD menu
- Desktop/Tripod/Ceiling/Wall installation
---------------------------------------------------------------------------------------
Corporate Boardrooms / Remote Learning / House of Worship / Courtroom / Healthcare / Government / Concerts / Presentations / Broadcast Multimedia
10x/12x/20x/30x optical zoom
The same design, different lens for your selection
DVI-I, HD-SDI video output interfaces , provide 1080p@60fps FHD video.

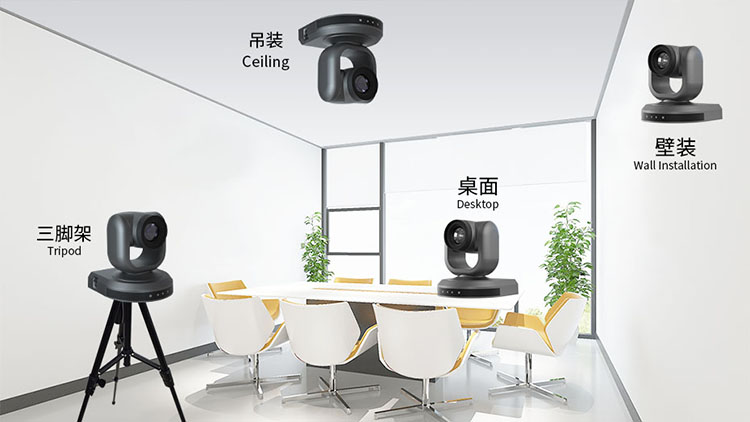

Desktop/Tripod/Ceiling/ Wall installation
DIMENSIONS
Specs:
- 1/2.8″ Progressive CMOS / 1/2.8″ Type Exmor CMOS
- 2.1 Megapixel / 2.41 Megapixel
- 0.5Lux at F1.6
- White Balance
- 10x Optical Zoom / 12x Optical Zoom / 20x Optical Zoom / 30x Optical Zoom
- HOV 60.9°-5.86°/ 72.1°- 6.55°/ 58.7°-3.2°
- 1080P60/50/30/25, 1080I60/50
- Pan Movement: 0-355°
- Tilt Movement: -45°~ +90°
TECHNICAL SPECIFICATIONS
Other:
- Video Output Interface: DVI-I, HD-SDI
- Communication Interface: EIA/RS232C, RS485(bidirectional)
- Communication Protocol: VISCA, PELCO-D
- Baud Rate: 9600/38400bps
- Remote Controller: IR Wireless Remote Controller P/T/Z
PACKAGE CONTENTS
Packing list:
- Video conferencing camera *1
- Charger * 1
- Remote controller * 1
- RS-232 cable * 1
- RS-485 cable * 1
- DVI-HDMI cable * 1
- Bracket * 1
- Screws set *1
- User’s manual * 1
- Certificate * 1
- warranty * 1
