Web Video Conference Camera
Support 105.6° ultra-wide horizontal field of view.
Support EPTZ function, zoom about 3 times, electronic pan/tilt movement and digital zoom function can be realized by remote control.
Support picture-in-picture function, able to capture close-up pictures such as speakers while watching panoramic pictures.
Built-in high-sensitivity 360° pickup digital microphone, with excellent noise reduction algorithm, the pickup distance can reach 5 meters.
USB interface power supply, convenient and simple, supports UVC, UAC protocol, USB interface plug and play.
Web Video Conference Camera Advantages
2K Ultra HD
2K HD image sensor, can support 1080P high-quality and clear images

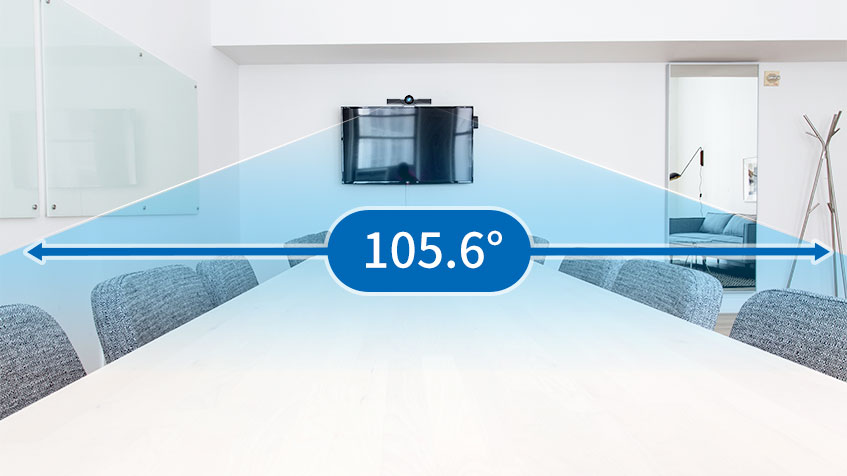

Ultra wide horizontal viewing angle
Support 105.6° ultra-wide horizontal field of view
EPTZ function, zoom about 3 times
Support EPTZ function, zoom about 3 times, electronic pan/tilt movement and digital zoom function can be realized by remote control
Picture-in-picture function
Support picture-in-picture function, able to capture close-up pictures such as speakers while watching panoramic pictures

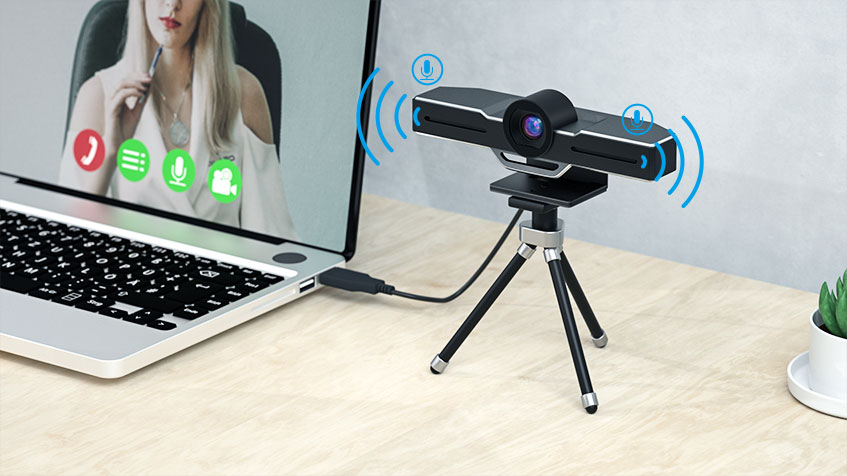

Built-in microphone
Built-in high-sensitivity 360° pickup digital microphone, with excellent noise reduction algorithm, pickup distance up to 5 meters
USB2.0 interface, plug and play
USB interface power supply, convenient and simple, supports UVC, UAC protocol, USB interface plug and play
SPECS
DIMENSIONS
DIMENSIONS
Vedio
| Image Sensor | Sensor | 1/2.8″ SONY CMOS |
| Effective pixel | 2.0 Megapixel | |
| White balance | Auto | |
| Gain Control | Auto | |
| Back Light Compensation | Support | |
| Electronic Shutter | Support | |
| S/N ratio | >50db | |
| Lens | Focus | 2.26MM |
| lris | F1.8 | |
| Zoom | Fixed(Support EPTZ, 3x Digital Zoom) | |
| HOV | 116.4°(D)/105°(H)/56°(V) | |
| Video output format | MJPEG/H.264: 1920*1080, 1280*720, 800*600, 640*360 | |
| YUY2: 1280*720,640*360 | ||
| Special functions | OSD, PIP, EPTZ | |
| Video output interface | USB2.0 | |
TECHNICAL SPECIFICATIONS
Audio
| Microphone | Built-in omnidirectional analog microphone, 360-degree pickup range |
| Pickup range | 5 meters |
| Audio processing technology | ANS automatic noise suppression technology, |
| AGC gain control adjustable technology | |
| Sampling rate | 48kHz |
| Transfer method | USB2.0 |
Other Parameters
| Total power | 1.5W MAX |
| Power supply | USB2.0 port provide power 5V 0.5A |
| Remote functions | Audio: Reserved Keys, no function |
| Video: ZOOM+, ZOOM-, Up, Down, Left, Right, OSD Menu, Turn off camera | |
| Status display | One-color LED indicator light |
| Work Temperature | -40℃-50℃ (Storage temperature) |
| -10℃ ~ 40℃ (Working temperature) | |
| Humidity | 0-95% RH |
| L x W x H | 200.6x55x70mm |
| Weight | 309.4g |
PACKAGE CONTENTS
Standard Packing List
① Conference Camera *1
② USB 2.0 Cable(5m) *1
③ Remote Control(no battery) *1
④ User’s Manual *1
⑤ Bracket and screws *1
