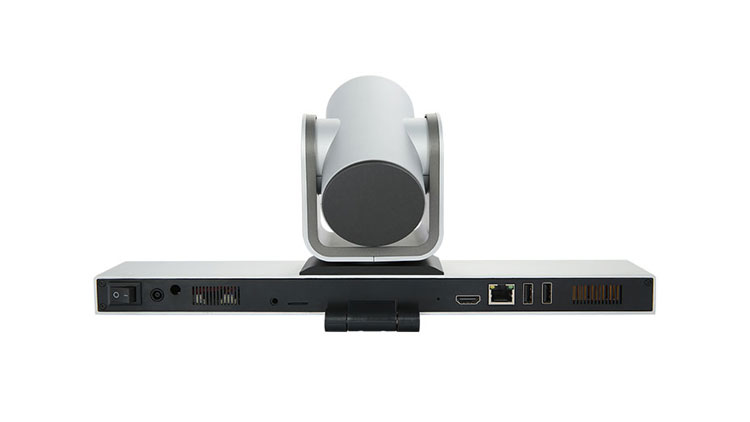

Meeting Box – Android HD Video Conferencing Solution
Smart Video Conferencing Endpoint, easy to install on the top of TV.
- All-in-OneIntegrated design
- 10x | 20x Optical Zoom
- Cortex-A17 Quad-Core 1.8GHz
- A variety of installation options
---------------------------------------------------------------------------------------
Product Description
- Compact Design, 1 Minute Deployment
- 3x | 10x Optical Zoom
- Cortex-A17 Quad-Core 1.8GHz
- 1000M Ethernet port
---------------------------------------------------------------------------------------

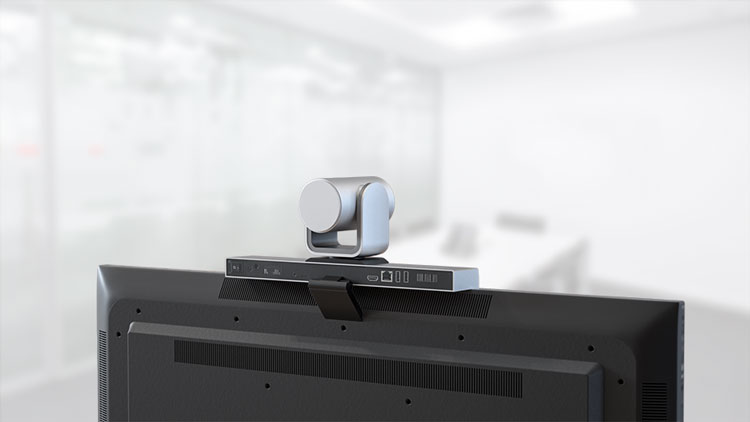

Compact Design, 1 Minute Deployment
- With all-in-one design by integrating codec, camera and bracket, T3L can easily fits TV ranging from 6mm to 50mm thick.
- Connect network, HDMI and power and you are ready for a video conference.
- Based on Android OS and TV-styled interactive user interface, easy to operate, no training cost.
3x | 10x Optical Zoom
2.1 Megapixel
1/2.9″ HD color CMOS
Different lens options to meet your special needs.
Cortex-A17 Quad-Core 1.8GHz
Android 5.1, 2GB 16GB
Install any video conferencing applications you like.
1000M Ethernet port
Experience the fastest connection speed to maximize video quality.
DIMENSIONS
Features
- 1/2.9″ SONY CMOS
- 2.1 Megapixel
- 0.1Lux at F1.6
- 3x Optical Zoom / 10x Optical Zoom
- HOV 84°/ 54°
- MJPEG: 1080p30/25, 720p30/25, 640*480, 640*360
- Pan Movement: -75°~ +75°
- Tilt Movement: -30°~ +30°
TECHNICAL SPECIFICATIONS
Motherboard
- CPU: Cortex-A17 Quad-Core1.8GHz
- RAM: DDRIII 2G
- SSD: 16GB (EMMC)
- OS: Android 5.1
- Interface:
USB2.0 * 2 (one USB2.0 supports OTG function)
RJ45 * 1
HDMI 2.0 * 1 (support 4K*2K decoding transmission)
TF * 1
3.5mm Earphone Jack * 1
DC port
PACKAGE CONTENTS
Packing list
- Video conferencing camera *1
- Charger * 1
- Remote controller * 1
- HDMI cable * 1
- Bracket * 1
- Screws set *1
- User’s manual * 1
- Certificate * 1
- warranty * 1
