Professional PTZ Camera with Versatile outputs – DVI-I, HD-SDI, CVBS
HD88 Series
Quantity
Oneking Professional PTZ Cameras are high definition broadcast cameras used for video conferencing, live streaming, recording, and more. It is typically used in scenarios such as:
- House of Worship
- Telemedicine Carts
- Medium to Large Conference Rooms
- Auditoriums

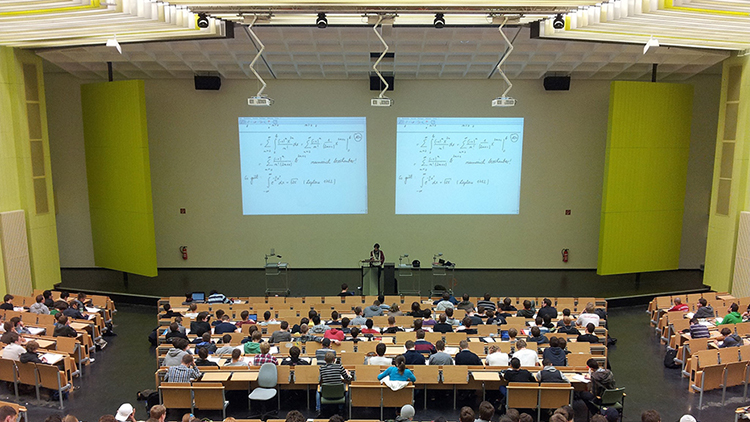

- Class Rooms
---------------------------------------------------------------------------------------
Equipped with 1/2.8” Progressive COMS Sensor, 2.1 Megapixel achieved full HD 1080p@60fps vivid video quality, perfect for multi applications, such as video conferencing, educational integration, broadcasting system, digital court, remote medical system etc.
FHD 1080p@60fps video output, make the video more vivid, the picture is more realistic, just like being immersive.

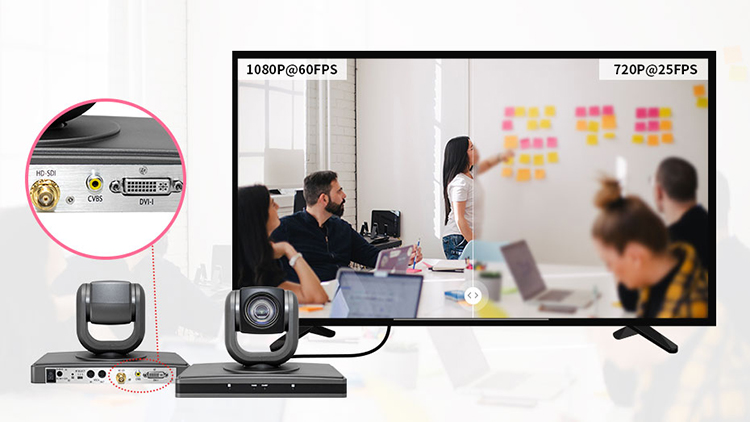

DVI-I, HD-SDI, CVBS Versatile outputs meet all different system solutions.
10x/12x/20x/30x optical zoom Meet medium to Large space and all budgets.

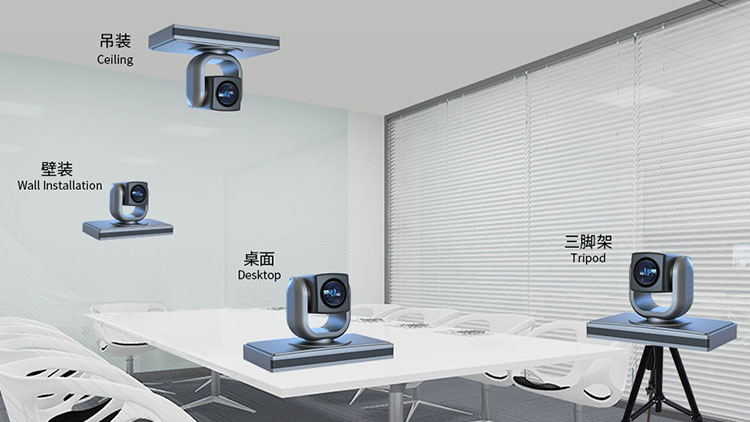

Desktop/Tripod/Ceiling/Wall installation
Compatible with Most Cloud Conferencing software
DIMENSIONS
Specs:
- 1/2.8″ Progressive CMOS / 1/2.8″ Type Exmor CMOS
- 2.1 Megapixel / 2.41 Megapixel
- 0.5Lux at F1.6
- White Balance
- 10x Optical Zoom / 12x Optical Zoom / 20x Optical Zoom / 30x Optical Zoom
- HOV 60.9°-5.86°/ 72.1°- 6.55°/ 58.7°-3.2°/ 63.7°-2.3°
- 1080P60/50/30/25, 1080I60/50
- Pan Movement: 0-355°
- Tilt Movement: -45°~ +90°
TECHNICAL SPECIFICATIONS
Other:
- Video Output Interface: DVI-I, HD-SDI, CVBS
- Communication Interface: EIA/RS232C, RS485(bidirectional)
- Communication Protocol: VISCA, PELCO-D
- Baud Rate: 9600/38400bps
- Remote Controller: IR Wireless Remote Controller P/T/Z
PACKAGE CONTENTS
Packing list:
- Video conferencing camera *1
- Charger * 1
- Remote controller * 1
- RS-232 cable * 1
- RS-485 cable * 1
- DVI-HDMI cable * 1
- YPbPr cable * 1
- Bracket * 1
- Screws set *1
- User’s manual * 1
- Certificate * 1
- warranty * 1
