H2-HAM is built to provide superb 1080p quality, adopts both USB3.0 and HD MI interface, works seamlessly with the industries latest web conferencing software and hardware conferencing.

• Small to medium sized room conferencing solution, adopts 10x optical zoom lens, built in high speed PTZ.
• HD optical lens delivering vivid images makes everyone visible in the seat.
• Adopts silent motor with low consumption, low rotation noise and precise positioning.

---------------------------------------------------------------------------------------

Product Description

• 1/2.8” Progressive COMS Sensor, 2.1 Megapixel
• 10x optical zoom & 12x digital zoom
• HOV 60.9°-5.86°
• HD: 1080P30/25 | YUY2: 1080P30/25, 720P30/25
• Pan: 330°, Tilt: -30° ~ +30°
• OSD menu
• VISCA, PELCO-D, UVC
• Desktop/Tripod/Ceiling/Wall installation

---------------------------------------------------------------------------------------

USB3.0 & HD MI video output

10x optical zoom & 12x digital zoom

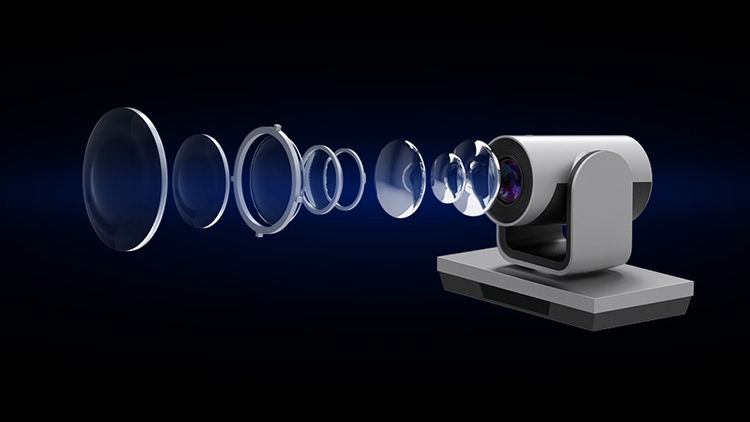

Crystal clear High Definition 1080p video with lossless 10X optical zoom letting you get up close to see and interact with your team.

Remote Control IR Wireless Remote P/T/Z

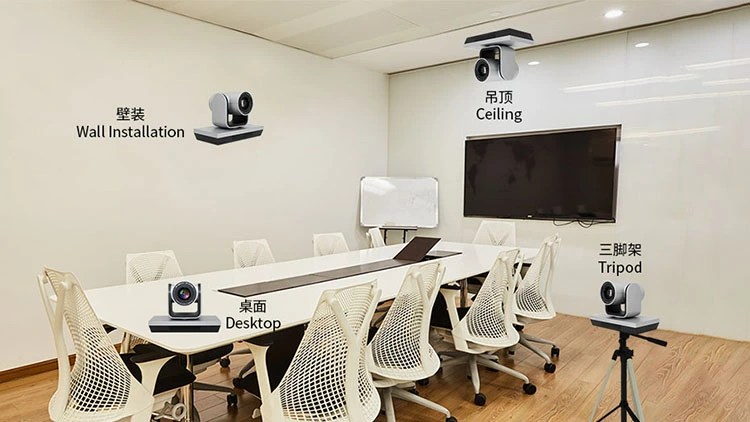

Desktop/Tripod/Ceiling/Wall installation

Simple USB Plug and Play

Compatible with Most Cloud Conferencing software

DIMENSIONS

Specs:

• 1/2.8″ Progressive CMOS
• 2.1 Megapixel
• Min Illumination 0.5Lux at F1.6
• White Balance
• 10x optical zoom & 12x digital zoom
• HOV 60.9°-5.86°
• USB3.0: 1080P30/25, 720P30/25, 800*600, 640*480, 640*360
• HD MI: 1080P30/25
• Pan Movement: 0-330°
• Tilt Movement: -30°~ +30°
• OSD

TECHNICAL SPECIFICATIONS

Dementions

• Video Output Interface: USB3.0, HD MI
• Communication Protocol: VISCA, PELCO-D, UVC
• Baud Rate: 9600/38400bps
• Remote Controller: IR Wireless Remote Controller P/T/Z
• Image Flip: Image Flip, Mirror

PACKAGE CONTENTS

Packing list:

• Video conferencing camera *1
• Charger * 1
• Remote controller * 1
• USB3.0 cable Type B * 1
• Bracket * 1
• Screws set *1
• User’s manual * 1
• Certificate * 1
• warranty * 1
